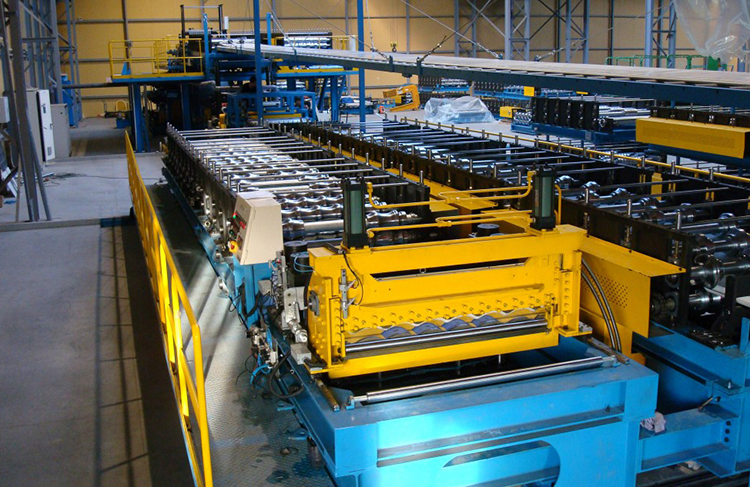

Roof tile roll forming machine
Composition
| Uncoiler |
| Entry shear |

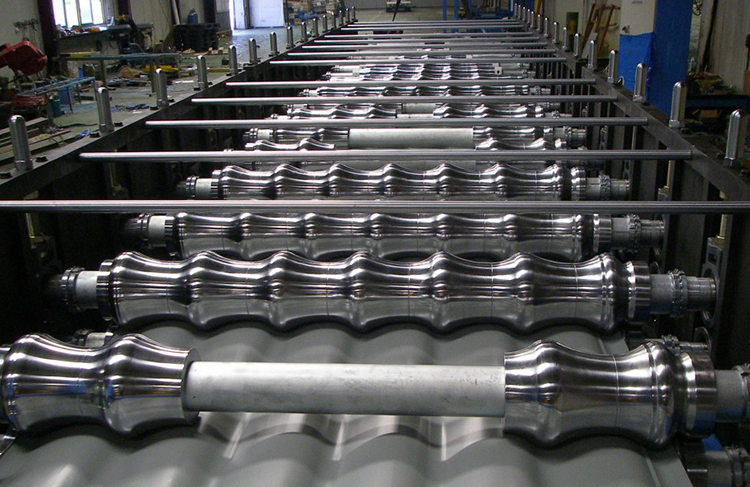

| Roll forming machine |

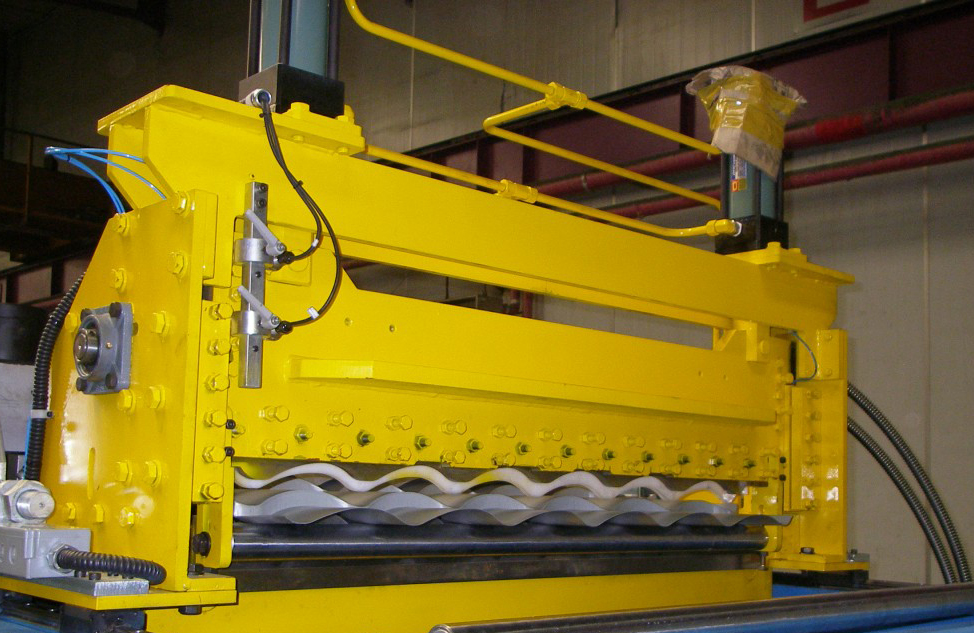

| Drawing machine |
| Shearing machine |

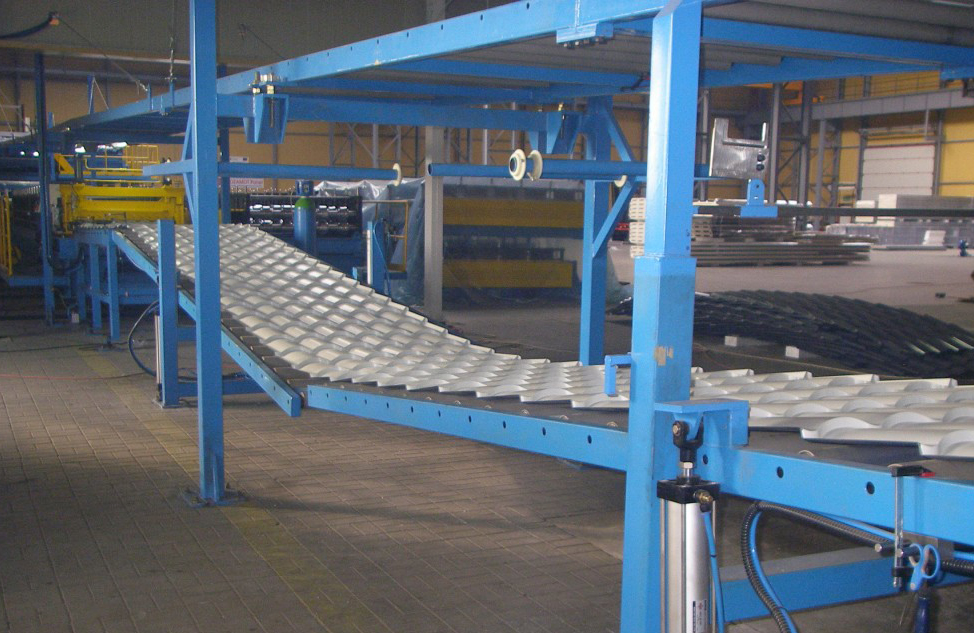

| Run-out conveyor |
| Stacking |
Specification
| Material | Al/Zinc/GI/PPGI |
| Thickness of material | Min. 0.3mm~Max. 0.6mm |
| Width of material | Min. 914~1,390mm |
| Production speed | Max. 8~13m/min |
| Drawing depth | 250mm, 14~20tiles/min |
| Drawing height | 15~25mm |
| Adjustable pitch range | 250~400mm |
| Drawing and cutting method | By hydraulic(Flying cutting) |
| Control system | PLC computer control and inverter |
