Panel Production LinePVC Floor Production Line
Introduction

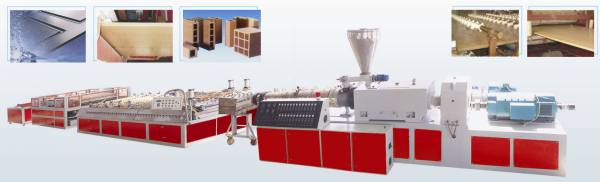

Conical twin-screw extruder, suitable for processing PVC powder raw materials.
Changing the moulds to produce many kinds of different PVC profiles.
Auxiliary machine: Mixer unit, Mould, Vacuum calibration table, Haul-off machine, Cutter and Stacker.
Specifications
|
Model |
YF108 |
YF180 |
YF240 |
YF300 |
YF400 |
Yf500 |
YF600 |
|
Board width (mm) |
108 |
180 |
240 |
300 |
400 |
500 |
600 |
|
Extruder |
SJSZ51/105 |
SJSZ51/105 or SJSZ55/110 |
SJSZ65/132 |
SJSZ65/132 |
SJSZ80/156 |
SJSZ80/156 |
SJSZ80/156 |
|
Main motor power(KW) |
18.5 |
18.5/22 |
37 |
37 |
55 |
55 |
75 |
|
Max capacity(kg/h) |
100 |
100-150 |
150-200 |
150-220 |
250-300 |
250-300 |
300-350 |
