PU Sandwich Panel MachineEPS sandwich panel line
EPS(Expanded polystyrene), well known as Styrofoam, is a good thermal insulation with waterproofing. Also, it can be recycled. However, the biggest selling point is a low price.
Our EPS sandwich panel line is a fully automation equipment system to produce various shapes of sandwich panels continuously and efficiently using EPS as a core material.
Our EPS sandwich panel line is composed as follows;
Composition
Step 1. | Decoiling system |
Step 2. | Roll forming system |
Step 3. | EPS board feeding system |
Step 4. | Adhesive(glue) system |
Step 5. | Laminating system |
Step 6. | Cutting system |
Step 7. | Cooling system |
Step 8. | Stacking system |
Step 9. | Wrapping system |
Our expanded polystyrene sandwich panel production line(EPS sandwich panel line) is already recognized its value by major sandwich panel producing companies at domestic and foreign with various technical researches and a high level services, we will keep trying for development in accordance with customer’s needs for the high quality sandwich panels.
Specification
Kind of products | Interior wall, Exterior wall(Secret fix), Corrugated roof and more |
Density of core material | Standard 15K |
Production speed | Average 4~18m/min |
Annual capacity | About 800,000㎡ |
Necessary dimension | Approximately W15m x L80m x H7m |
Required electric power | About 150kw |
Required air pressure | Minimum 6~7bar |
Currently, we had become not only the biggest sandwich panel machinery manufacturing company, but also one of major sandwich panel production(EPS, MW, PU/PIR) company with 4 continuous sandwich panel production lines.
In this regard, we can provide a special and differentiated service to all our clients that supplying production line along with various techniques and know-hows which are very useful to maintain and operate the equipment in actual work site.

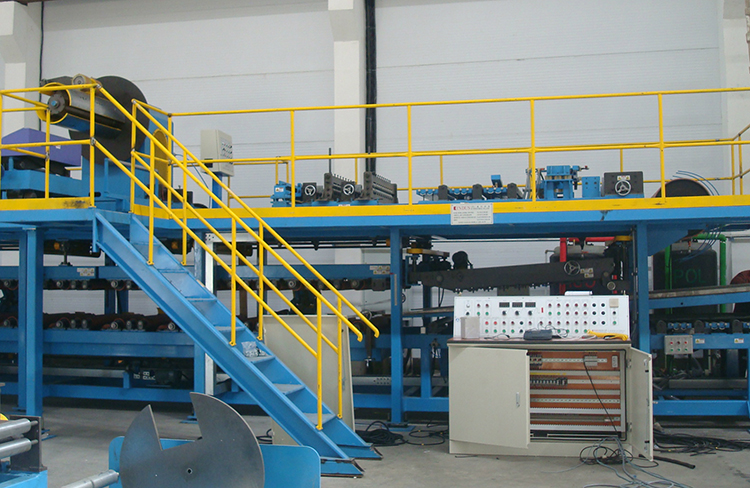

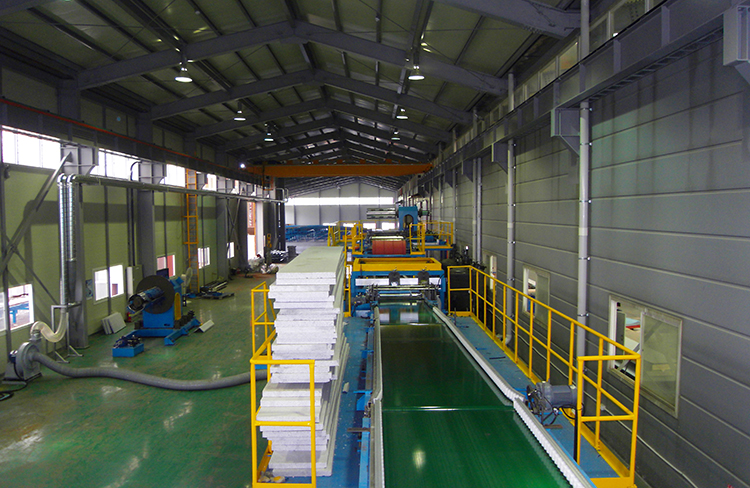

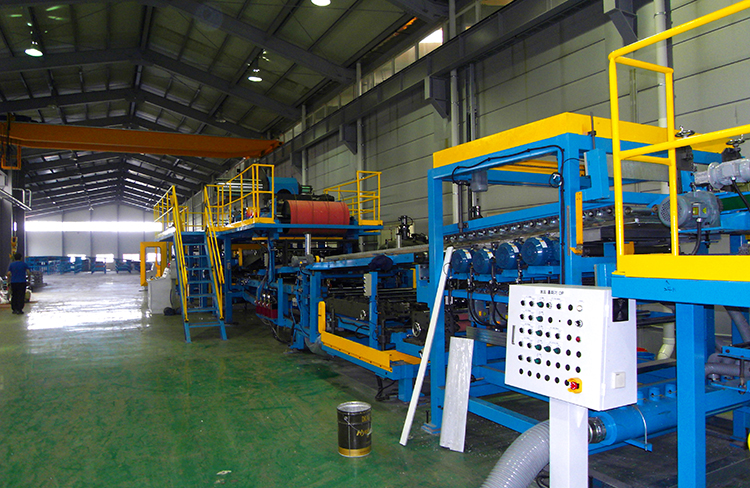

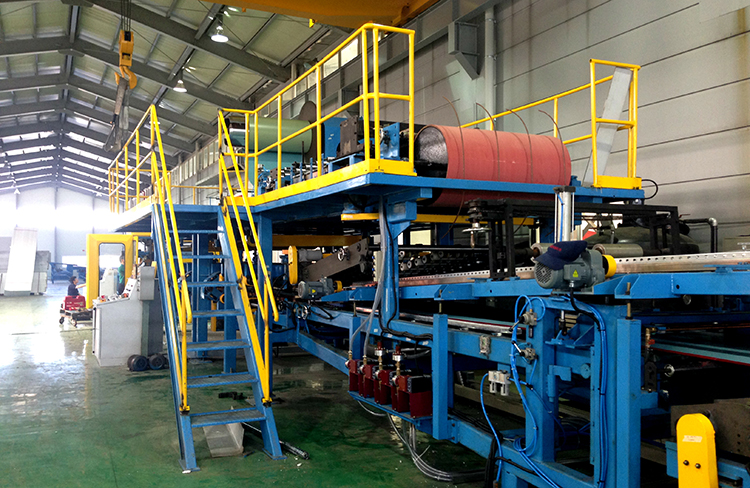

Reference Photos

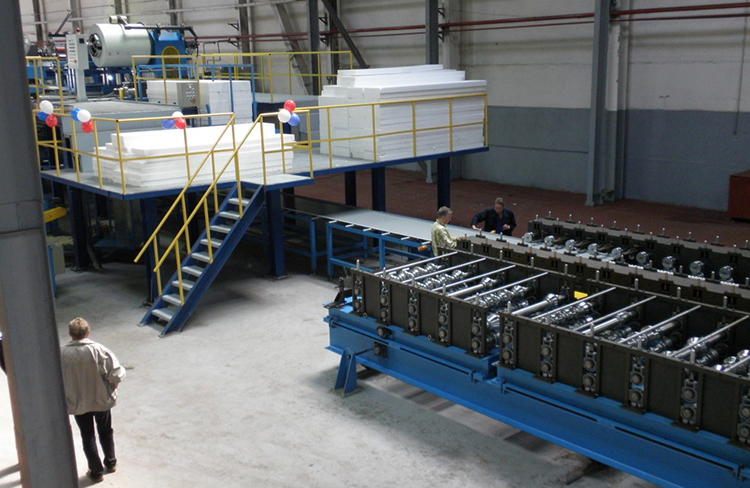

![](/d/pu/2-EPS-sandwich-panel-production-line.jpg)
![](/d/pu/EPS-sandwich-panel-production-machine.jpg)
![](/d/pu/EPS-sandwich-panel-production-line.jpg)
![](/d/pu/EPS-sandwich-panel-production-equipment.jpg)

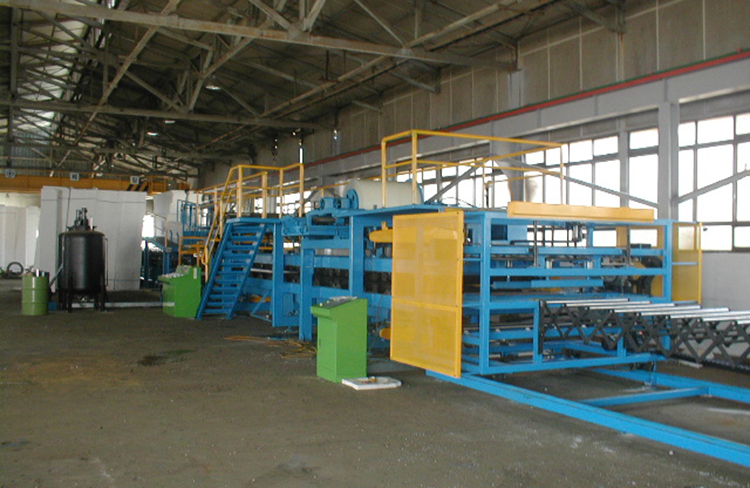

![](/d/pu/4-EPS-sandwich-panel-manufacturing-machine.jpg)
![](/d/pu/EPS-sandwich-panel-line.jpg)

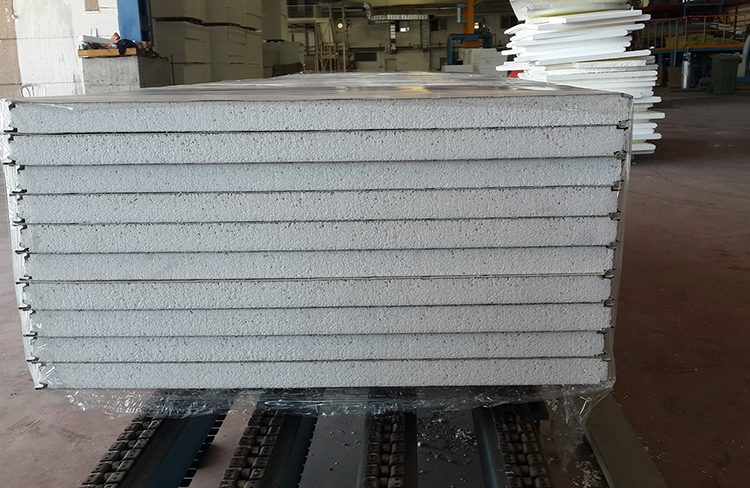

![](/d/pu/EPS-sandwich-panel-equipment.jpg)
![](/d/pu/EPS-sandwich-panel-machine.jpg)
