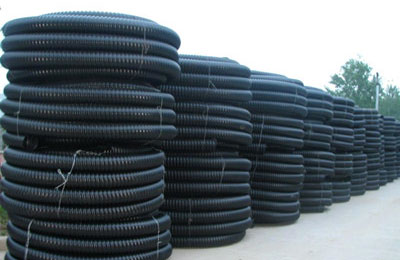

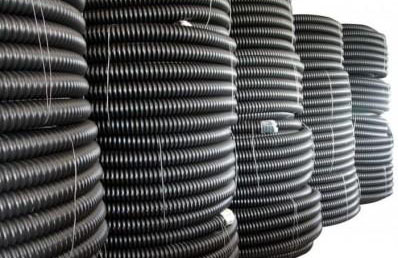

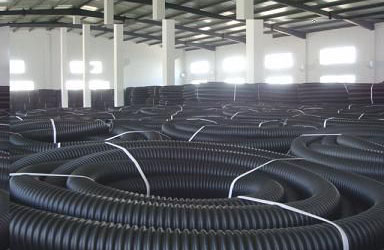

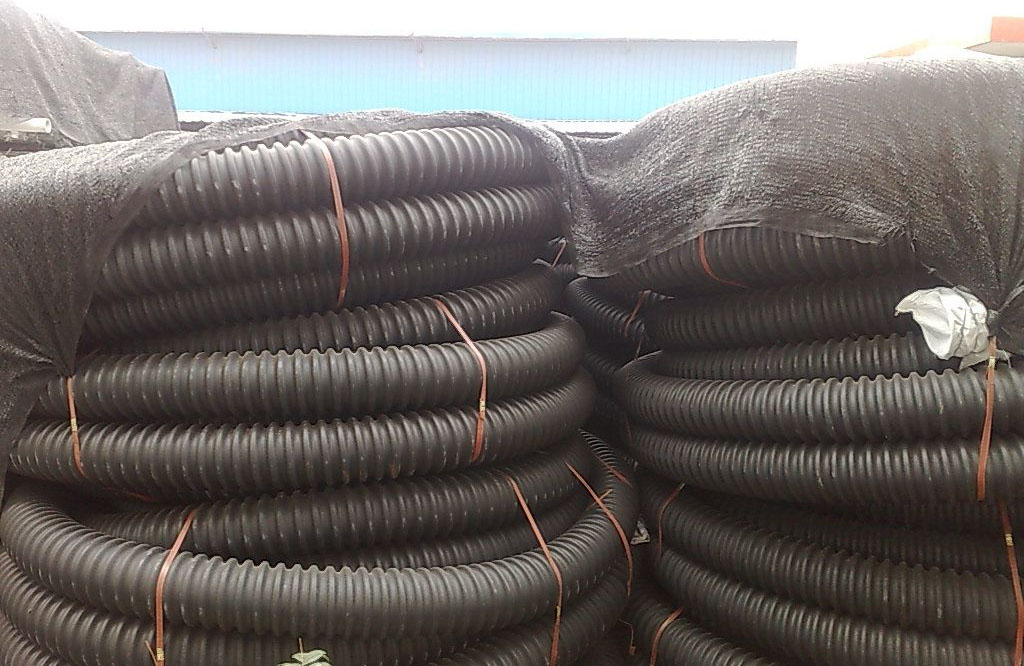

Pipe Production LinePE Carbon Screw Pipe Production Line
Introduction
PE Carbon Spiral Reinforcing Pipe Extrusion Unit is one of our main products, it adopts advanced technologies, high quality with competitive price.
The advantages are as follows:
1. Special single screw extruder for the use of polyolefine material, high speed extrusion and effective plasticization.
2. The special detachment type mixing screw and the standard designed die with spiral structure reasonable channel are applicable to produce pipes with smooth inner and outer wall.
3. Unique sizing and cooling mode is capable of producing pipe diameter is Φ50-Φ200mm,production speed is up to 0.6-1.5m/min.
4. All kind of polyolefine material, multi-layers sprial strengthening pipe can be co-extruded for various uses, 80% of recycle material can be used in production;
5. Optimum spiral bronze sizing sleeve, pre-cooling and powerful vacuum suction device in the entrance, suiting for high speed extrusion of pipes;
6. Specific design for spry cooling trough;
7. Cooling water trough is made of stainless steel;
8. High efficient cooling comes from peculiar spraying nozzle and high efficiency water pump;
9. Three-dimensional regulation, longitudinal move by motor;
10. Advanced co-extrusion technology, lower the cost for using recycling material.

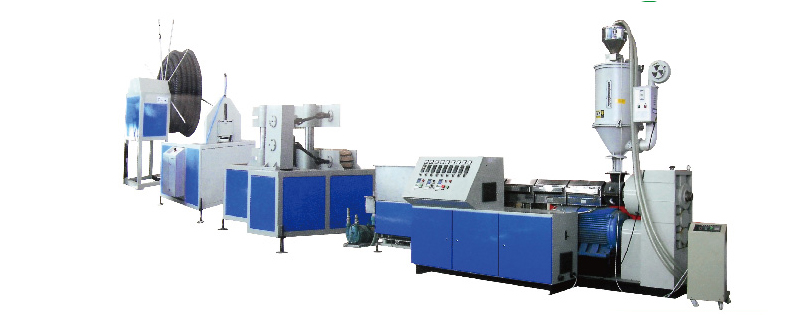

![](/d/plastic/pe-1.jpg)
Production Line Structure
Extruder |
SJ-90/33 |
SJ65/33 |
Dia(mm) |
75-200 |
50-150 |
Sizing Water Tank |
SGZL-200 |
SGZL-150 |
Hauling Machine |
SLQ-200 |
SLQ-150 |
Braider |
SQ-200 |
SQ-150 |
