Large diameter HDPE water supply and gas supply pipe extrusion line
Pipe Production LineLarge diameter HDPE water supply and gas supply pipe extrusion line
introductions

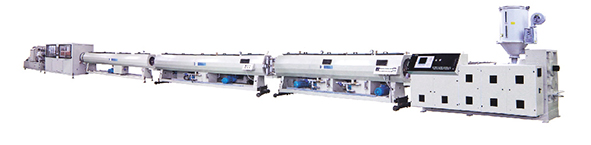

HDPE water supply and Gas supply Pipe Extrusion Lineused in producing HDPE water, gas supply pipe. Its features compact structure, highly automation and stable performance. Screw of extruder is equipped with barrier unit and mixing structure and the barrel owns new style grooves. Vacuum sizing tank can ensure the stability of size and rounedness, speed controllers are used in extruder, haul-off to offer stability and precision performance. Whole line adopts PLC performance control system and large liquid screen, which makes the operation very convenient. The line can be equipped with another extruder used for extruding the mark line.

Technical parameters

Pipe ranger(mm)

20-63

50-160

150-250

250-315

280-630

Extruder

SJ65/33

SJ75/33

SJ90/33

SJ120/33

SJ150/33

Capacity(kg/h)

50-80

80-150

180-260

300-400

450-600

Total power(kw)

75

145

195

220

350

Line length

35

38

42

44

56

Control system

PLC

PLC

PLC

PLC

PLC

Remark: if above mentioned parameter changed, forgive us won’t notify.

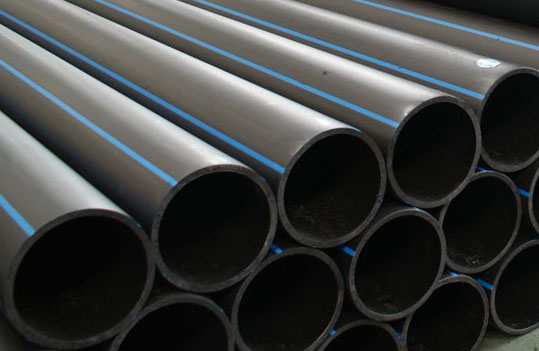

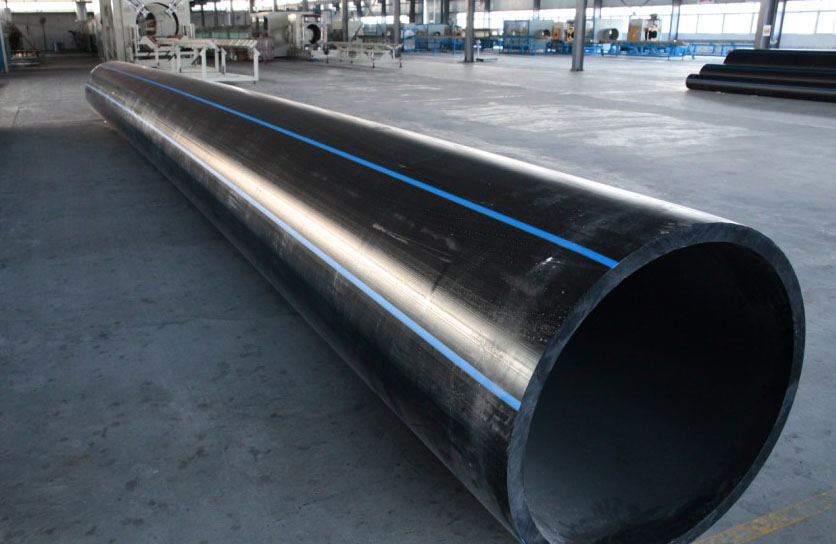

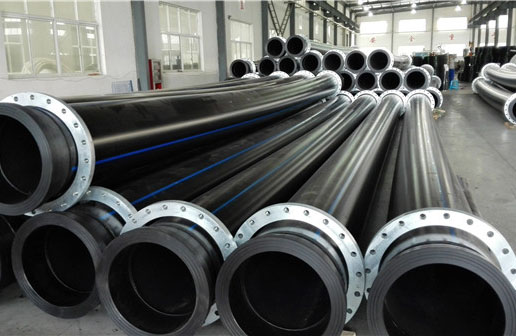

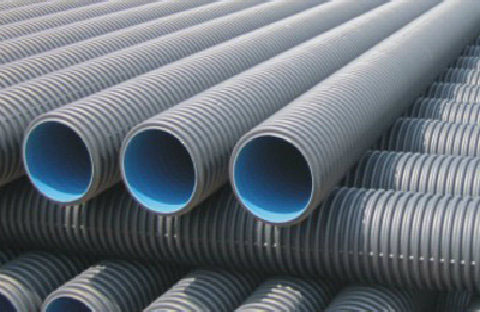

Reference Photos
