Pipe Production LinePPR, PERT Pipe Production Line
Introduction
1. Suitable to U-PVC, C-PVC, M-PVC , PE, PPR,PP,HDPE,LDPE pipe extrusion
2.PPR/PERT Pipe Production Line with various diameter and wall thickness, from 16-800mm.

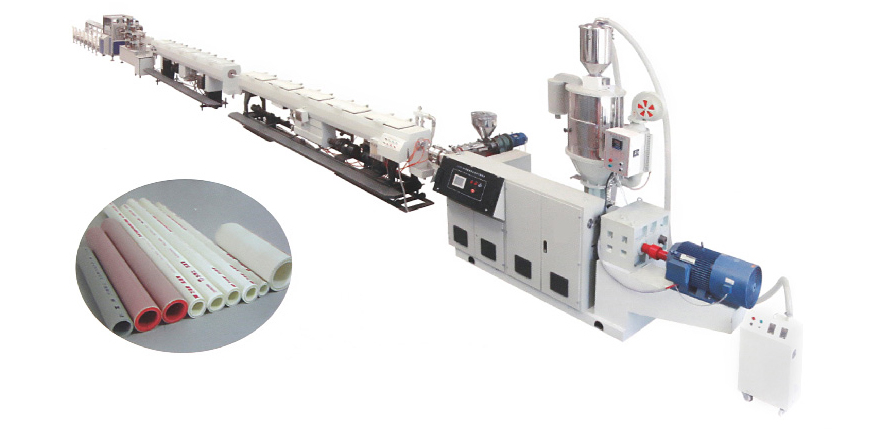

3. the plastic pipe production linemainly includes twin screw extruder, pipe extrusion die, vacuum calibrating water tank, spray cooling water tank, hauling unit, cutting unit and stack unit.the extruder is specially designed for producing variours pipe.
4.adopted the Siemens, ABB, Schneider famous brand electric components and high quality extruder alloy screw and barrel
5. Supply technical service, formula guide and staple raw material purchase
![](/d/plastic/ppr-line.jpg)
Specifications
Pipe range | 20-63mm single |
20-63mm dual |
75-160mm |
110-315mm |
315-630mm |
Extruder |
SJZ51/105 |
SJZ65/132 |
SJZ80/156 |
SJZ80/156 |
SJZ92/188 |
Extruder power |
18.5kw |
37kw |
37kw |
55kw |
110kw |
Extrusion capacity |
120kg/h |
250kg/h |
250kg/h |
360kg/h |
800kg/h |
Max. Production speed |
12m/min |
10m/min |
6 m/min |
3 m/min |
1.2m/min |
