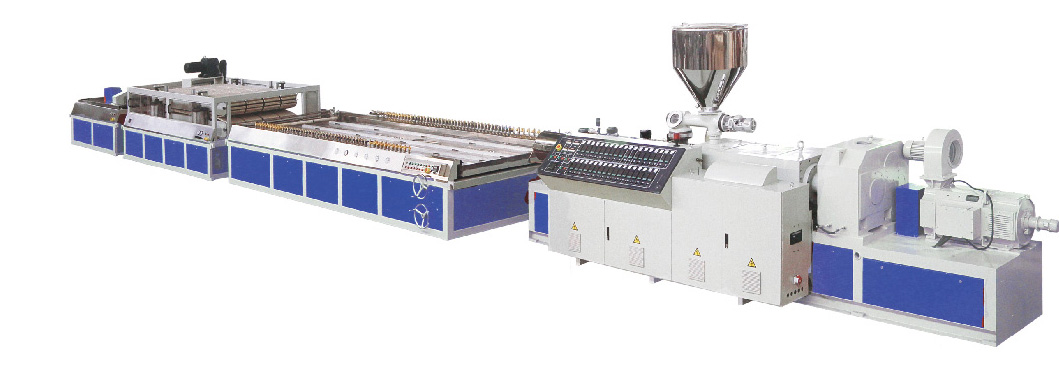

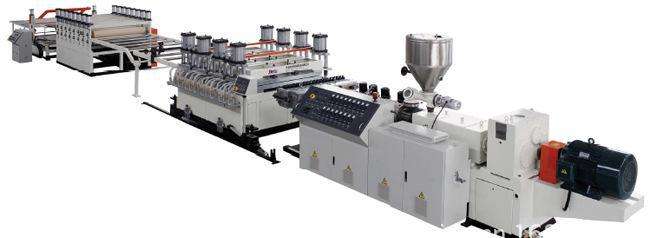

Plastic Extrusion LinePEPPPVC WPC Profile Production Line
Introduction

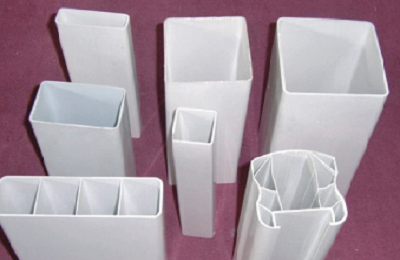

It could produce the PVC Wood-Plastic products.
It is a new environmental-friendly product, which combines the wood powder and plastic powder at a certain percent. PVC WPC products have features of the lowest pollution, anti-acid and alkali-proof, water proof, anti-rot, non-poisonous and non-smell, high-strength, and it can be recycled, etc.
Specification
Model |
YF108 |
YF180 |
YF240 |
YF300 |
YF400 |
YF500 |
YF600 |
Max width of board(mm) |
108 |
180 |
240 |
300 |
400 |
500 |
600 |
Extruder |
SJSZ51/105 |
SJSZ51/105 or SJSZ55/110 |
SJSZ65/132 |
SJSZ65/132 |
SJSZ80/156 |
SJSZ80/156 |
SJSZ80/156 |
Main motor power(KW) |
18.5 |
18.5/22 |
37 |
37 |
55 |
55 |
75 |
Capacity(kg/h) |
100 |
100-150 |
150-200 |
150-220 |
250-300 |
250-300 |
300-350 |
