PVC Crust Foamed Board Production Line
Plastic Extrusion LinePVC Crust Foamed Board Production Line
Introdction

PVC crust foamed board production line is also called PVC wood plastic foam board production line, PVC wood plastic furniture plate production line, PVC wood cabinet board production line, wood plastic construction board production line. The biggest difference among them are different density and different formulation, because of material difference, the production line of wood plastic foam plate and PVC foam plate have differences in screw forms. PVC crust foamed board has properties of sound insulation, sound-absorbing, heat insulation, thermal insulation. The plate is flame retardant without the risk of fire, it is safe to use. All series of products have properties of anti-moisture, anti-mildew, water repellent and good shockproof effect.

The series of skinning foam board are made by anti-weathering formulations; the color can be permanent and non-ageing. PVC crust foamed plate has light weight, easy for storage and transportation, convenient construction. This product can use the general wood processing tool to process. It can be drilled, sawed, planed, nailed, glued like wood. It is suitable for hot forming, heat bending and folding processing. It can be welded according to general welding procedure, and it can also adhesive with other PVC materials.

The surface of PVC crust foamed plate is smooth, able to print. (need to wipe clean the surface before printing). Product application transportation the internal decoration plate for ships, aircraft, train, bus, car roof, car body core layer. Architectural decoration industry outer wall board, building decoration board, residential, office buildings, public places, commercial decorative frame, compartment for clean room board, ceiling board. Advertising screen printing, computer engraving, advertising board, signal board. Industrial application chemical anti-corrosion engineering, heat molding, cold storage plate, special cold preservation engineering, environmental protection board. Other uses template, sports equipment, breeding material, seashore damp-proof facilities, waterproof materials, art materials, all kinds of light partition board.

Specifications
Model

SJSZ80/156

SJSZ92/188

SJSZ80/156-SJSZ65/132

Material

PVC

PVC

PVC

Product width (mm)

1220

1220-1700

1220-1700

Product thickness (mm)

5-25

5-25

5-25

Screw L/D ratio (L/D)

22

28

22

Main power (kw)

75

132

75kw 37kw

Max. Production capacity (kg/h)

350

600

500

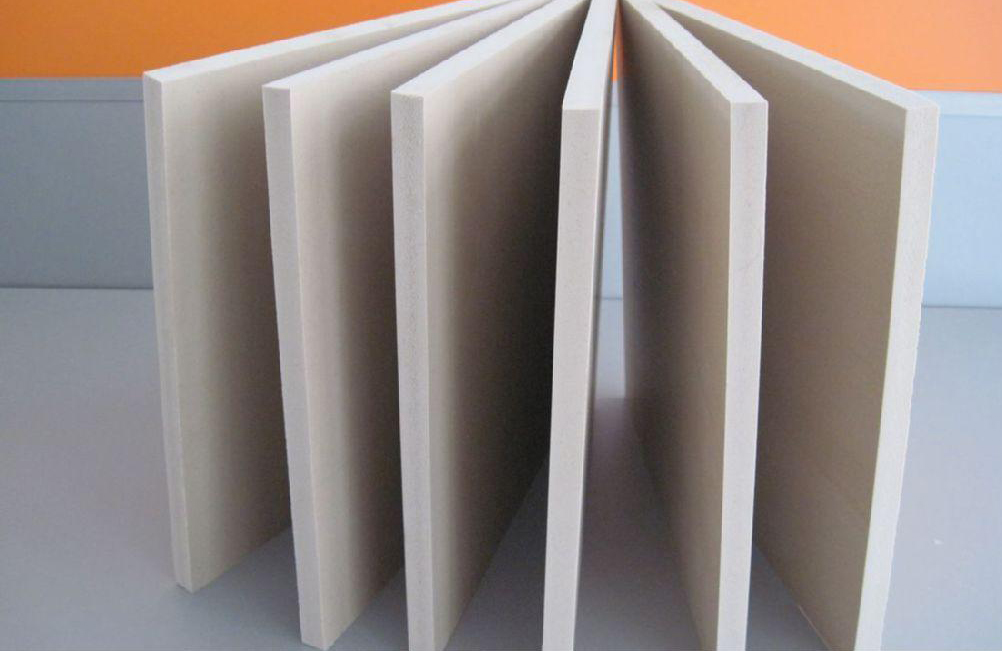

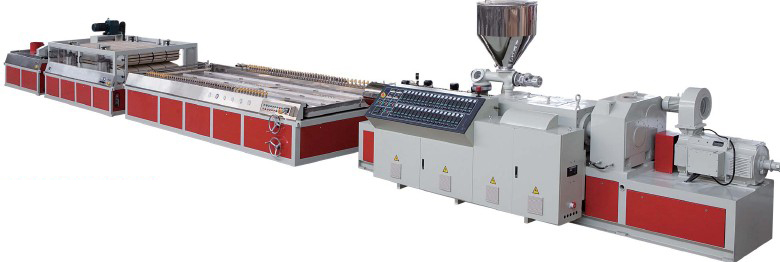

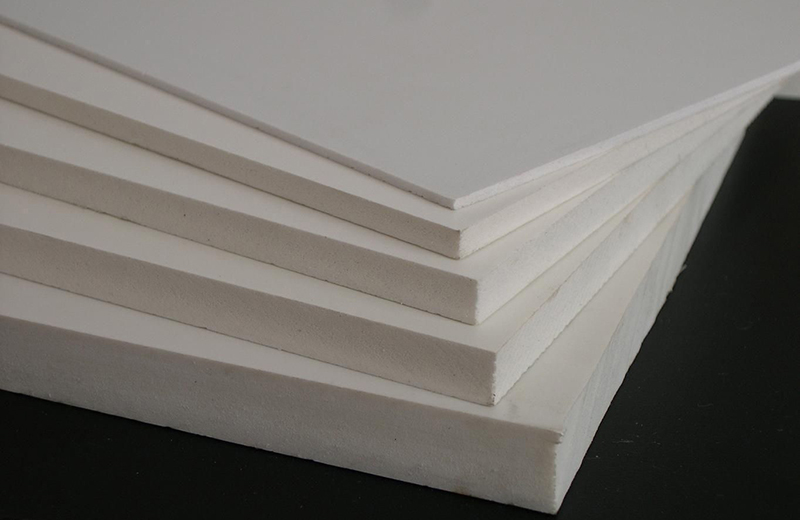

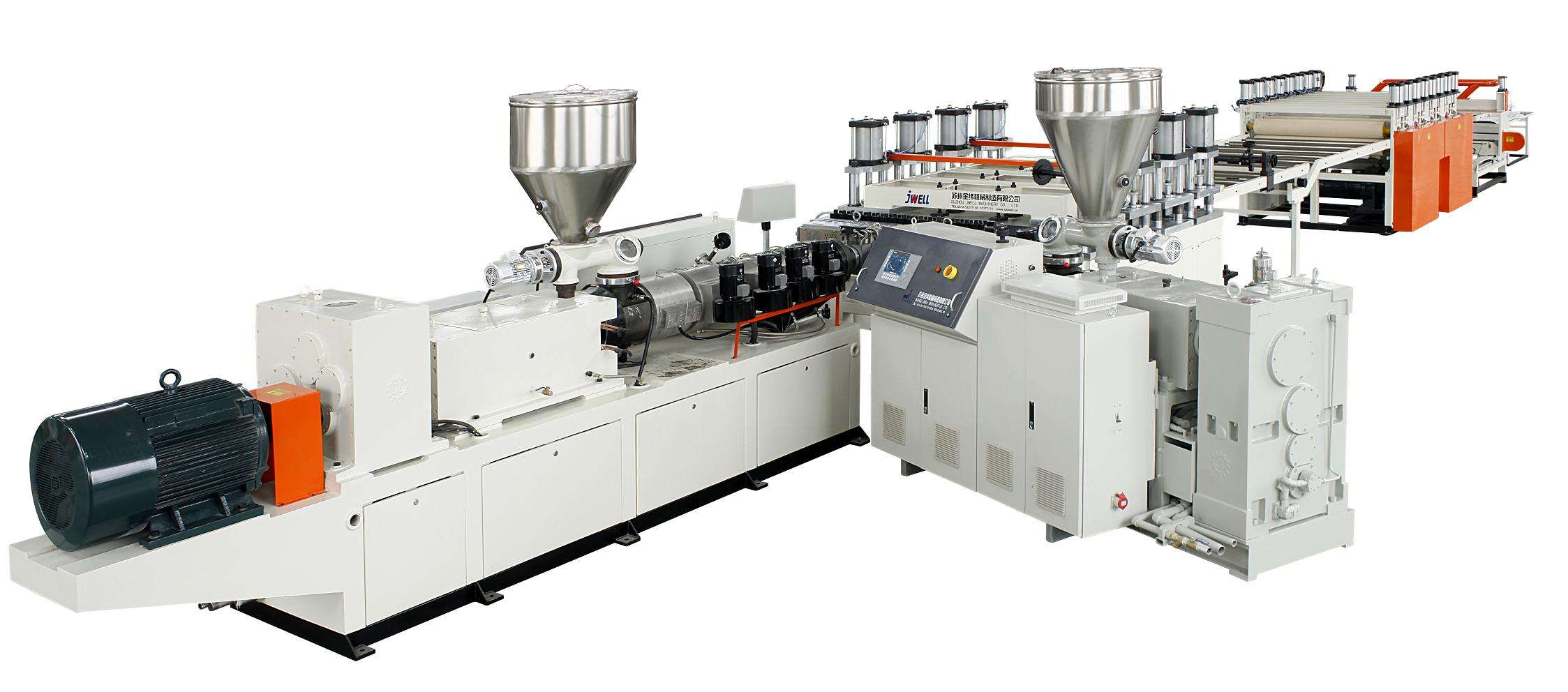

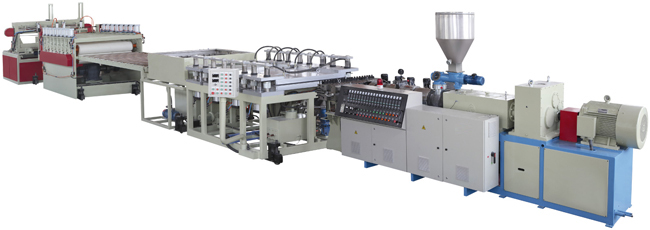

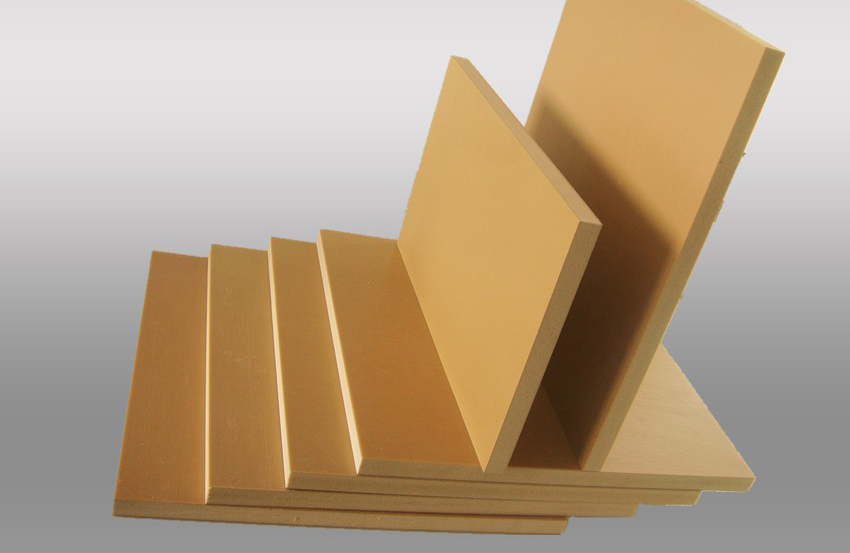

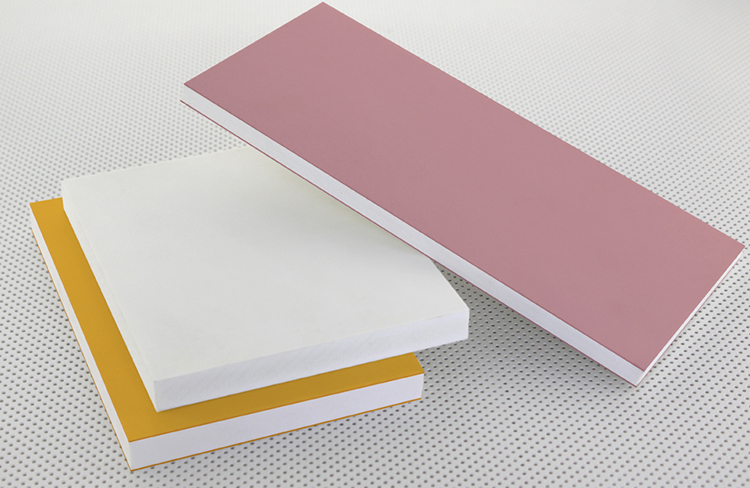

Reference Photos
