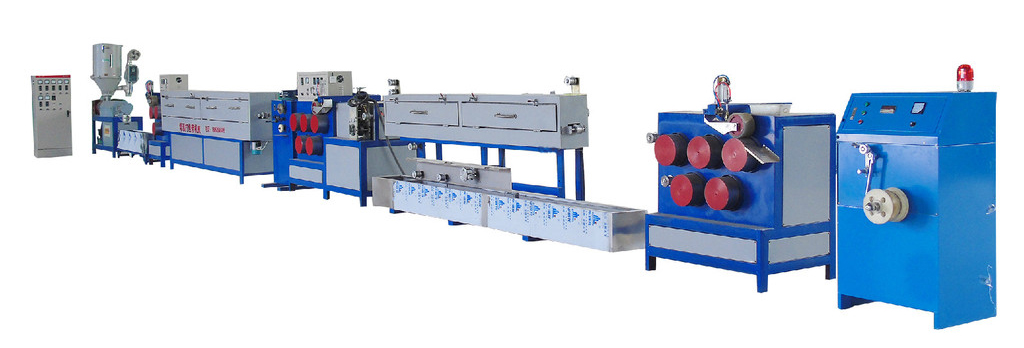

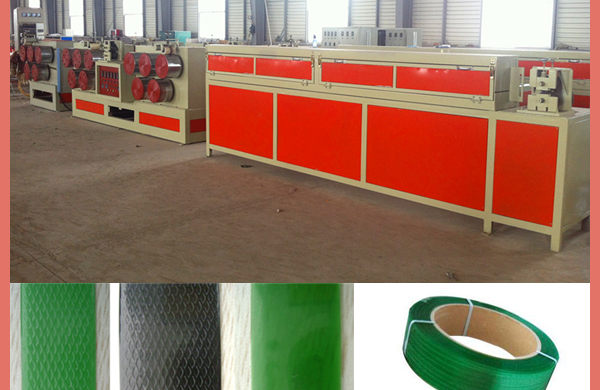

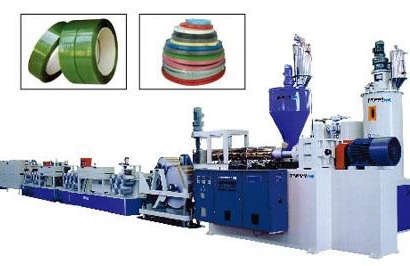

Plastic Extrusion LinePET, PP Packing Strap Production Line
Introduction
1. PET production line for packing belt is new equipment developed by our company ,by combining the characteristics of our plastics product trade ,collecting advantages of the same type machine made in domestic and overseas markets and repeating practice in production.
2. The machine adjusts is conversion motor as power source .
3. The mechanical transmission adopts soft connection.
4. Its rotation is exact and smooth, saving power and low noise.
5. PET has advantages ,such as good stiffness , high temperature resistant ,its specific gravity is 1/5 the one of steel.
6. It is mainly suitable for packing for various trades.
7. Its characteristics: high tensile strength ,small percentage elongation, resistance to impact, not easy to be broken ,cheap, good softness, convenient operation, safe and reliable .
8. In the world ,it is an ideal substitute of steel belt.
9. It is widely used in papermaking, wooden products, textile cotton and fiber ,color metal, canned products, chemical , metallurgy, power cable, aluminum.
10.Plastics shaped materials and other products and various kind of trays.
11.The use of the product is convenient, it can adopt common steel fastening for connection.
12.It also is suitable for various kinds of hand-operated of table packing machine and large auto packing machine of enterprises.
13.It adopts hot-melting connection
Specifications
|
Model |
LHPET |
workshop size(mm) |
25000*5000*6000 |
|
total power(kw) |
120 |
strap width(mm) |
9-25 |
|
main motor(kw) |
30-37 |
strap thickness(mm) |
0.5-1.5 |
|
motor drive |
AC |
drying volume(kg/h) |
100 |
|
popwer supply |
380V ,50HZ |
drying power(kw) |
24 |
|
daily output(kg/day) |
1000-2000 |
loading power(kw) |
3 |
|
workers |
2-3p/shaft |
strap quantity available |
1 |
