Introduction

The PVC WPC foam board from our machine is widely used for building template, furniture board, kitchen cabinet board, bathroom cabinet board and advertising board and household decoration board, upholstery for train, car and ship and so on.
PVC WPC foam board extrusion line is our latest updated products. It's continuously improved on the basis of requirements and feedback from our customers and combined with foreign advanced technology. This production line adopts our unique wood and plastic technology and formula. It can also extrude wood-plastic plates with PVC+ wood powder. It shows superior performance, high reliability and practicality with its compact structure, advanced configuration and outstanding output in the production of 3-30mm thick, high-qualified and colored PVC and WPC foam board.

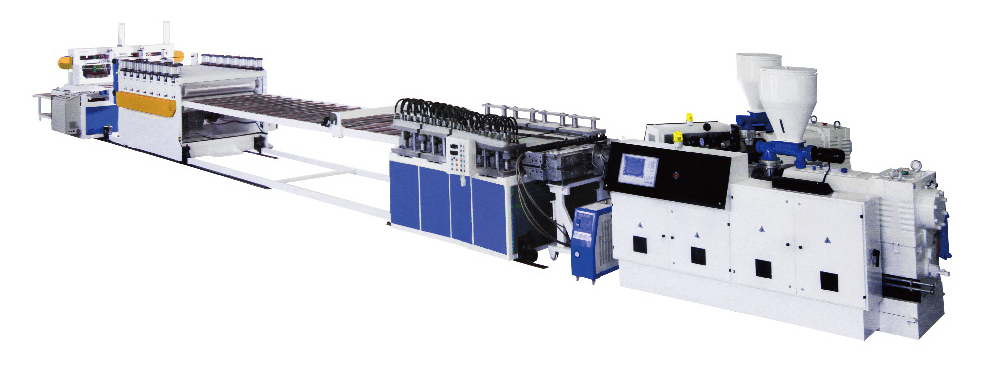

EQUIPMENT STRUCTURES

1. SMF-400Miller SMF-400 1 set
2. SHRL-Z500/1000A High-speed Heat/Cooling mixing machine SRL-Z500/1000 1 set
3. ZJF500 Automatic feed loader ZJF500 1 set
4. SJSZ80/156 Extruder SJSZ80/156 1 set
5. Mould 1 set
6. Calibration platform ZKDX-1220 1 set
7. Bracket TJ-2000 1 set
8. Haul off machine SLQ -1220 1 set
9. Through cutter 1 set
10. Cross cutter HQG-1220 1 set
11. Stacker BFL-1220 1 set
12. Crusher SWP360 1 set

ELECTRICAL CONFGURATION

1. Main motor frequency controller: SIMENS or ABB
2. Temperature controller: OMRON or RKC
3. AC controller: SCHNEIDER or SIMENS
4. Thermal overload relay: SCHNEIDER
5. Switch: DELIXI or SCHNEIDER

PRODUCTION PROCESSING

Material Mixing: PVC + additives or PVC + wood powder + additives
Extrusion Processing: Mixed material going through the extruder, Mould, calibration unit, cooling carrying roller and trimming cutter, and delivery device.

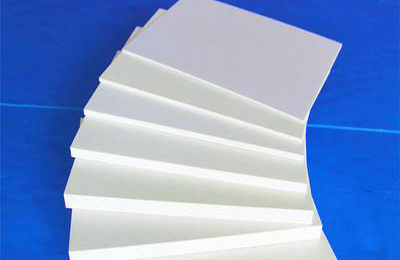

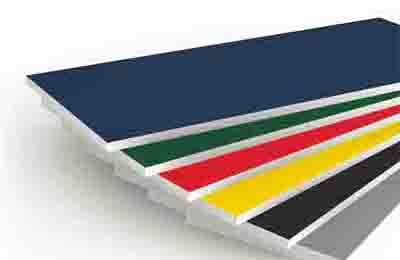

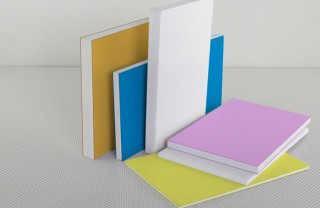

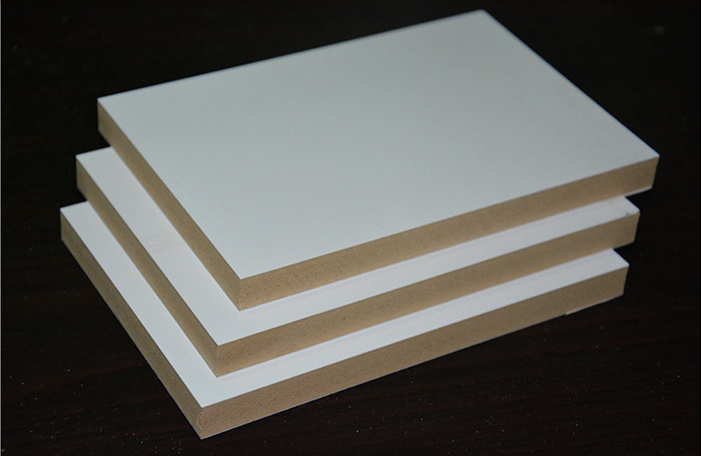

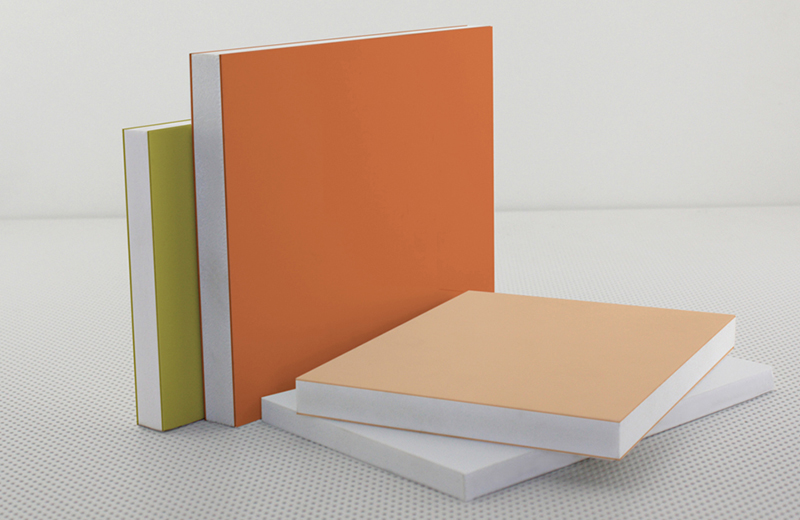

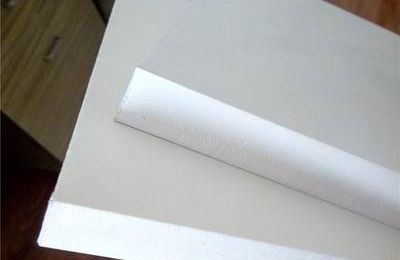

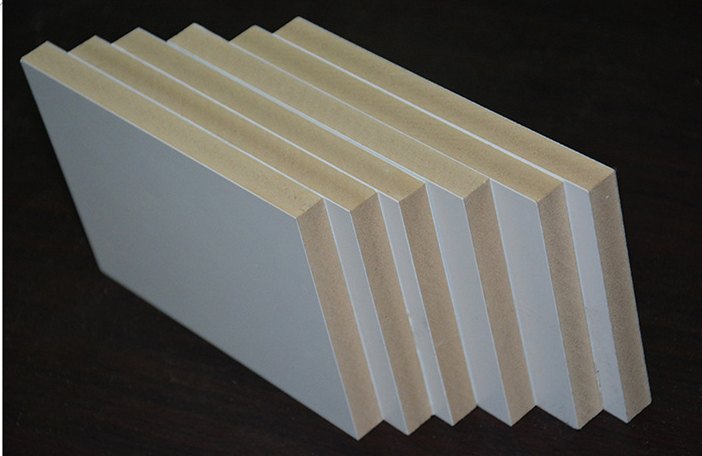

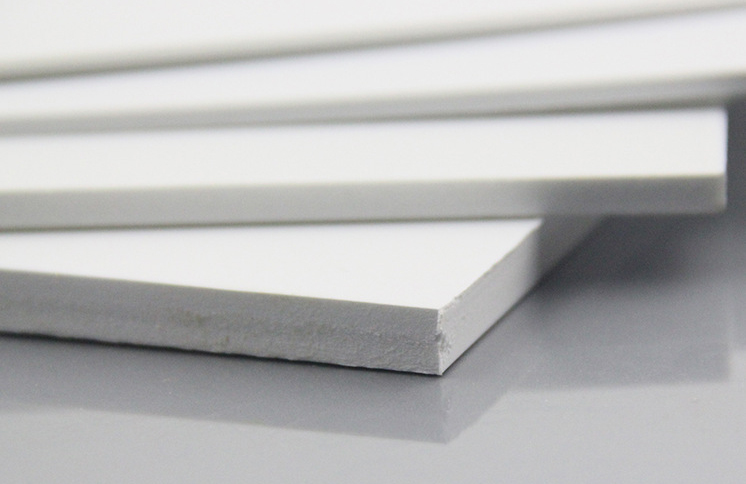

Final Products: PVC or WPC foam board

Reference Photos
